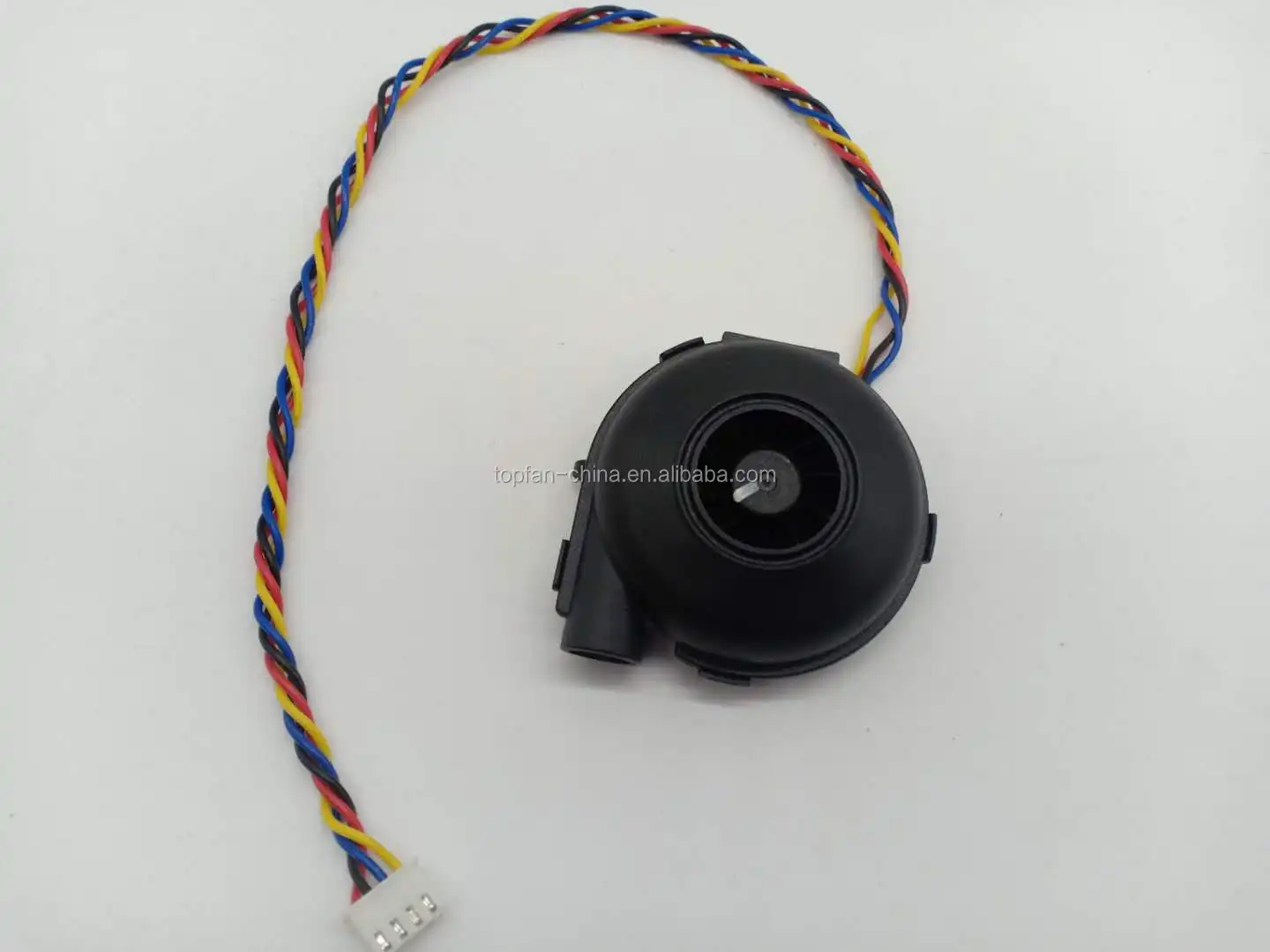

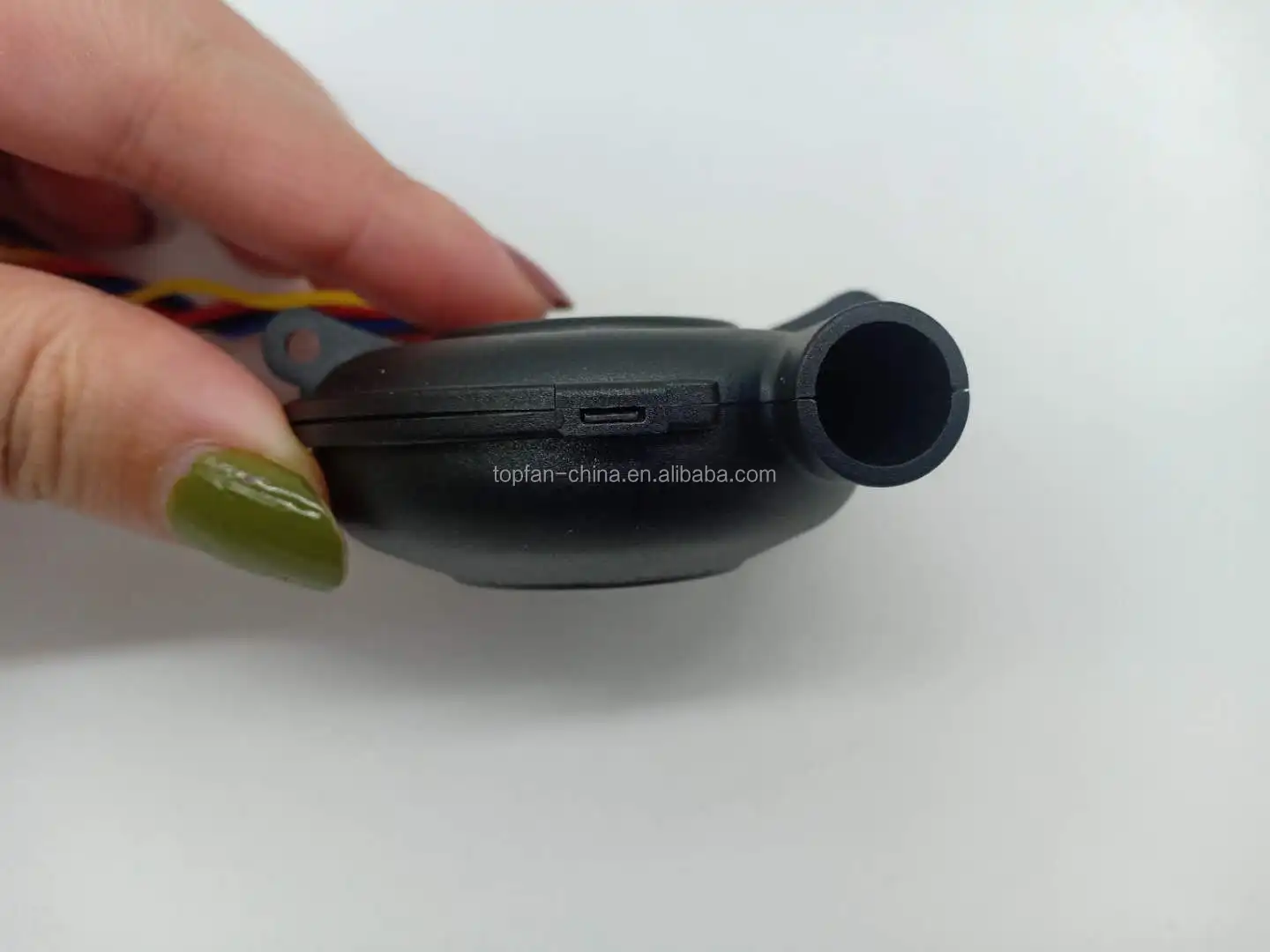

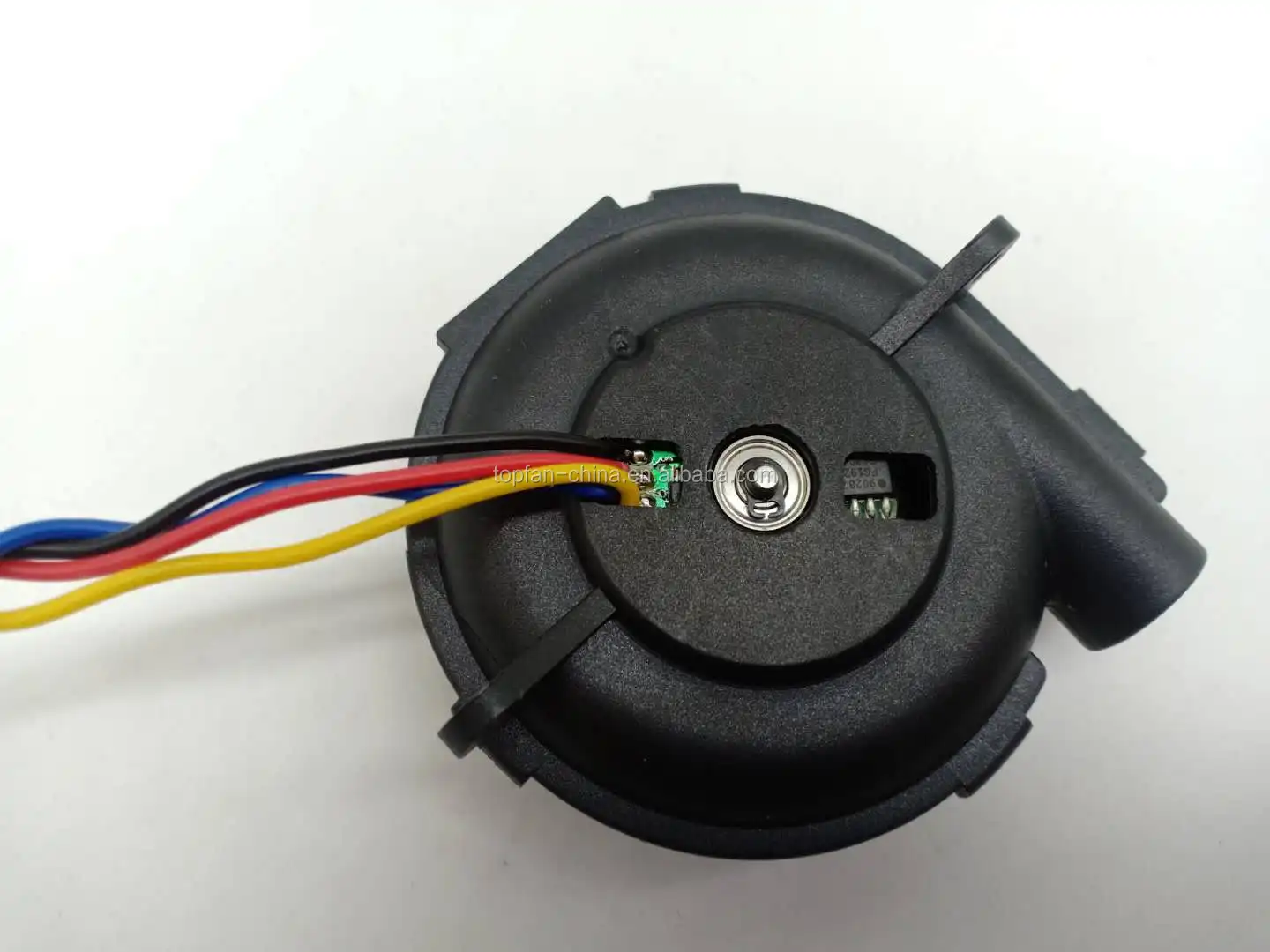

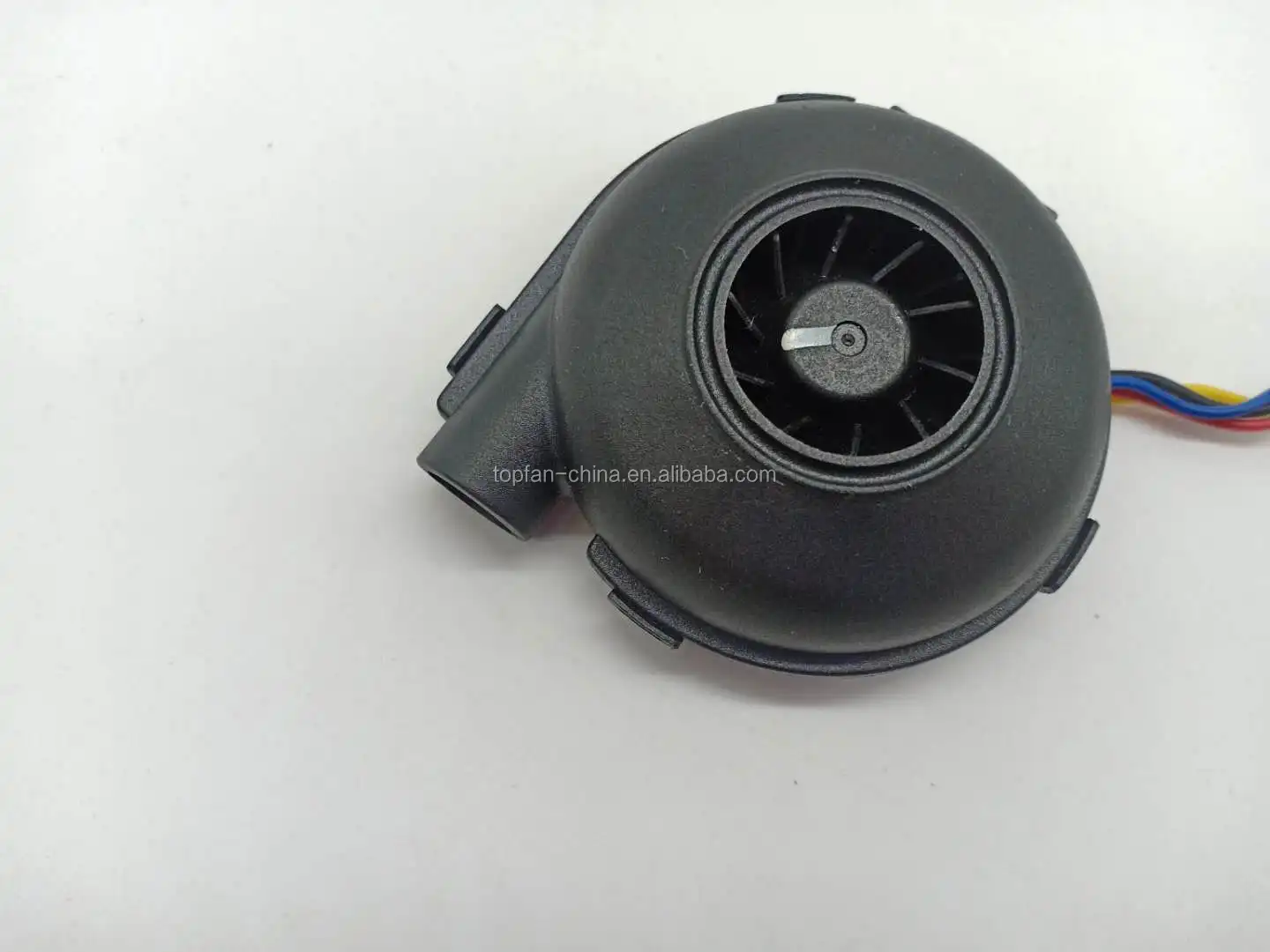

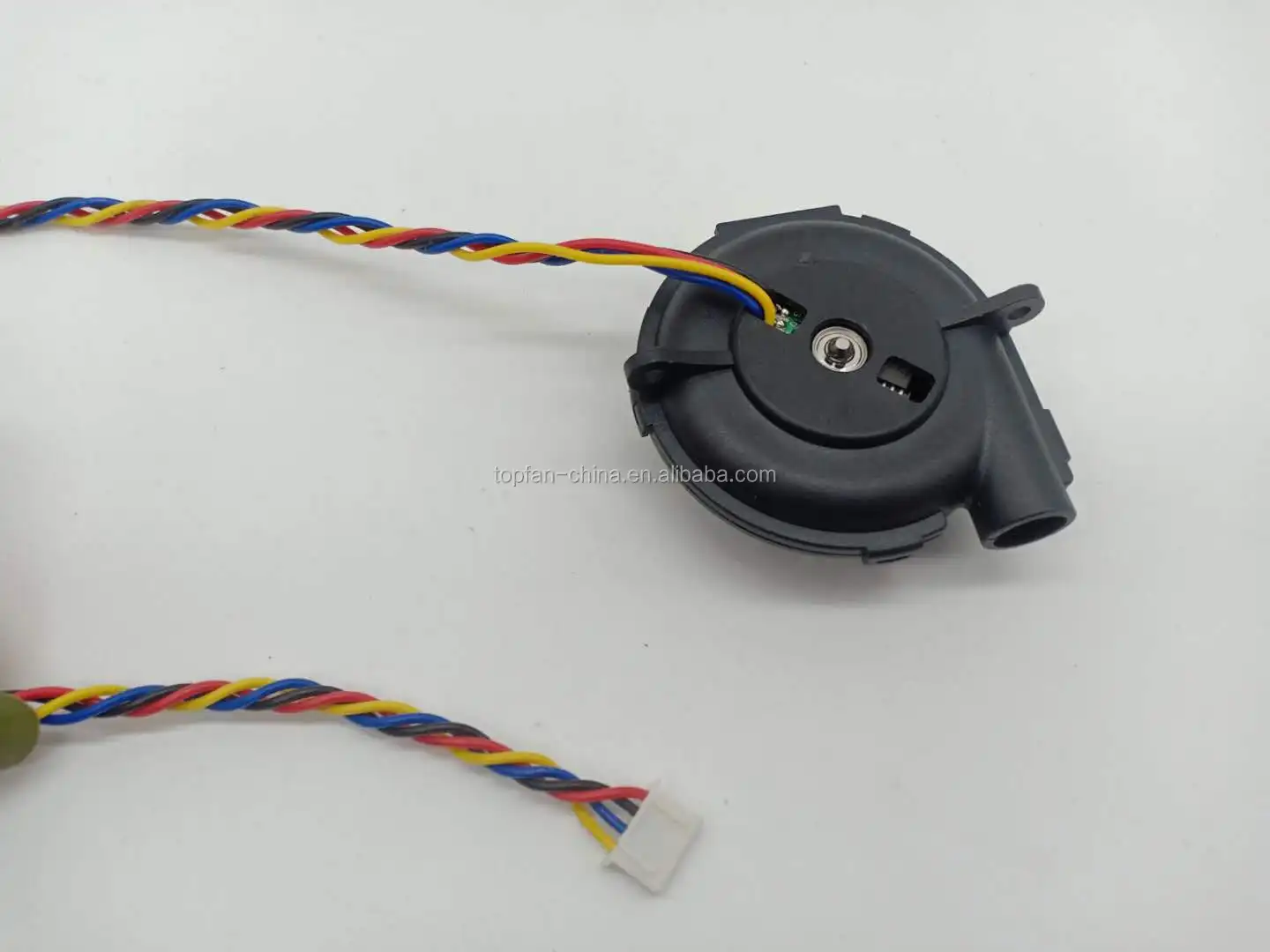

12VDC Blower Fan 58x28mm DC Blower Fan Centrifugal Fan 20000rpm
Our company also develops and designs products including the following:
A. Voltage category: DC voltage 5V,12V, 24V, 36V48V, etc.;
B. Bearing category:
1. Oil bearing (Sleeve Bearing): working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65% RH, the estimated life is about 30,000 hours (about 3.5 years),
2. Double ball bearing (TWO Bearing): When working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65%RH, the estimated life is about 50,000 hours /6 years,up to 100,000 hours and more, the performance is stable but its price is expensive.
3. Hydraulic bearing: working in an environment with an ambient temperature of 25°C and a relative humidity of 15% to 65% RH, the estimated life is about 40,000 hours (about 3.5 years).
| Model: | MX5828GBH1 | Voltage: | 5V/12V |
| Size: | 58x28mm | Speed: | 20000RPM |
General Specification
| ITEM | Specification Condition |
| 01 | Part No. | MX5822GBU1 |
| 02 | Dimension | 58×22mm |
| 03 | Rated Voltage | 12VDC |
| 04 | Start-up Voltage | 6VDC |
| 05 | Operating Voltage | 6.0~13.0VDC | a.Rated Voltage |
| 06 | Rated Speed | 11000rpm | ±10% | b. 25℃ |
| 07 | Rated Current | 0.4A | ±10% | c. 65% RH |
| 08 | Rated Power | 4.8W | d. Measured after 5 Mins |
| 09 | Max Airflow | 10.6 | CFM | a. PQ Measurement Apparatus : (LW9266-SR) b. Standard : AMCA c. Rated Voltage d. Rated Current |
| 0.301 | m3/min |
| 10 | Max Static Pressure | 1000±10% |
| 11 | Life Expectancy | 10000hrs at 30℃ | a.L10 at Conf. Level 90% b.Rated Voltage |
| 12 | Noise Level | 50.5dB | a.Rated Voltage b.Non-Echo Chamber c.Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e.Distance: 1.0M |
| 13 | No. of Pole | 4Poles |
| 14 | Rotating Direction | Counte(From Label side) |
| 15 | | Motor group foam three anti-paint |
The characteristics of the products produced by our company: brushless DC, low power consumption, low noise, long life, ultra-small and ultra-thin, lead-free environmental protection, high safety, good operational stability, and low vibration. Our company has its own mold injection department, which opens the mold by itself, which not only reduces the cost of the fan, but also better controls the quality of the fan. It can also be produced according to the customer's drawings by opening the mold, and manufacturing and putting into production with the sample.
Additional protection functions can be added: AS automatic lock / start function, slow start function, over current protection, motor lock current protection, reverse connection protection, over voltage protection, PWM,FG,RD,Reversible fan,Waterproof fan, IP55, IP68
contact information:Molly
Skype/WhatsApp/Tel:+86 152 7034 4076
Product Tags:
|
|
20000RPM 58×28mm 12V DC Blower Fan For Equipment Cooling Images
|
