9GV1212P1J01 DC Cooling Fan Sanace New Product With FG / PWM Control Function

Name: 9GV1212P1J01 DC Cooling Fan Sanace New Product With FG PWM Control Function
Brand: MX / OEM / ODM
Price: 5 USD

Brand Name : MX / OEM / ODM

Model Number : 9GV1212P1J01

Certification : CE, ROHS

Place of Origin : Guangdong, China

MOQ : 500pcs

Price : us$5 / pcs to us$12 / pcs, and negotiation

Payment Terms : T/T, paypal

Supply Ability : 600, 000pcs per month

Delivery Time : 5 - 7 working days after received your payment

Packaging Details : carton, other can be customized

Product name : 12038, DC fan, 4.7'' fan, 120mm dc fan, Bitcoin fan

Rate Voltage : 12V 24V 48V DC

Speed : 4000RMP can do more higher and lower

Bearing type : sleeve / ball bearing

Motor : Impedance Protected And Reverse Polarity Protected

Weight : 78g

Frame and impeller material : Plastic (94V - 0), PBT

Size : 120 mm x 120 mm x 38 mm ( 12038 )

Blade : can do 5 blade / 7 blade / 9blade

Contact Now

9GV1212P1J01 120mm dc cooling fan, sanace fan with FG and PWM control function

Description :

● Brand: SanAce fan

● Model number:
9GV1212P1J01
9GV1212P1G01
9GV1224P1J01**
9GV1224P1H01**
9GV1248P1J01
● Size : 120 x 120 x 38mm.
● Material : Plastic Frame and Plastic impeller
● Blade number : 7 blades
● Voltage : 12V DC / 24V DC / 48V DC
● Bearing type : Ball bearing

● Expected life : Ball bearing 50000hours -80000hours ( -5℃ - 40℃ )
● Protection level: Waterproof ip68, dumproof, explosion - proof , high temperature, dustproof and anti - corrosionare all can be satisfied.

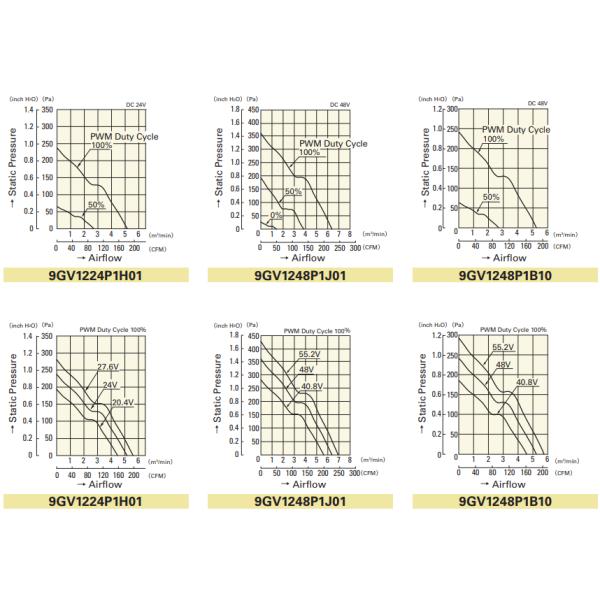

Model:	DC Fan 120x120x38mm
Model number:	9GV1248P1J01
Rated Voltage[V]:	48
Frame Size[mm]:	120
Frame Thick[mm]:	38
Rated Speed[min-1]:	6400
Max.Airflow[m3/min]:	6.35
Max.Airflow[CFM]:	224.0
Max.Static Pressure[Pa]:	360
Rib:	Ribed
SPL[dB(A)]:	64

9GV1212P1J01 DC Cooling Fan Sanace New Product With FG / PWM Control Function

Our advantages
1.Reliable quality as well as Competitive price
2. Large volume flow and long life expectancy
3. High speed and large air flow
4. Low noise and high efficiency
5. Ball or sleeve bearing for options
6. Sample lead time:3-5 days
7. Delivery lead time:2 weeks
8. Professional service

9GV1212P1J01 DC Cooling Fan Sanace New Product With FG / PWM Control Function
